What Is This?

This is a fork of GEF that includes three major improvements:

1. Adds heuristic commands for kernel debugging without requiring a symbolized vmlinux (for qemu-system, supports Linux kernel 3.x-6.18.x).
2. Expands support to many architectures (for qemu-user).
3. Provides heap dump commands for multiple memory allocators.

Numerous other commands have been added and enhanced. Enjoy!

Setup

Supported Environment

• Verified on Ubuntu 24.04 and 25.04.
• Expected to work on Ubuntu 22.04-23.10.
• Might work on Ubuntu 20.04-21.10, though not recommended.

Install

• Run the following command (NEW: this is the uv-based installer).

  wget -q https://raw.githubusercontent.com/bata24/gef/dev/install-uv.sh -O- | sudo sh

• Notes
  • To simplify installation, gef.py is always installed to /root/.gef/gef.py
  • The required Python packages are in /root/.gef/.venv-gef.
  • GEF's directory (/root/.gef) is also registered in /root/.gdbinit.
  • For more installation options (no venv, minimal install, and for non-root user), see docs/FAQ.md.

Upgrade

python3 /root/.gef/gef.py --upgrade

• Note
  • If you get errors after upgrading, it may be due to old config. Try renaming /root/.gef.rc.

Uninstall

rm -rf /root/.gef
rm -f /root/.gef.rc
rm -rf /tmp/gef
sed -i -e '/from gef import/d' /root/.gdbinit

Dependencies

Please refer to install.sh or install-minimal.sh for installation requirements.

Added / Improved Features

Supported Modes

• Standard debugging
• Attaching to a running process
• Attaching to a process in an isolated namespace (e.g., attaching from outside a Docker container)
• Connecting to Gdbserver
• Connecting to the GDB stub of Qemu-system
• Connecting to the GDB stub of Qemu-user
• Connecting to the GDB stub of Intel Pin
• Connecting to the GDB stub of Intel SDE
• Connecting to the GDB stub of Qiling framework
• Connecting to the GDB stub of KGDB (requires GDB version 12 or later)
• Connecting to the GDB stub of VMWare
• Connecting to the GDB stub of Wine
• Debugging with Record and replay (rr replay)

For a comprehensive list and additional details, see docs/SUPPORTED-MODE.md.

Qemu-system Cooperation

• pagewalk: dumps page tables.
  • x64 (Supported: 4-Level/5-Level Paging)
    •
  • x86 (Supported: PAE/Non-PAE)
    •
  • ARM64 (Supported: only Cortex-A, EL0-EL3, stage1-2)
    • ARM v8.7 base. 32bit mode is NOT supported.
    •
    • Here is a sample of each level pagewalk from HITCON CTF 2018 super_hexagon.
    •
    • Secure memory scanning is also supported, but you have to break in the secure world.
    •
    • Pseudo memory map without detailed flags and permissions can be output even in the normal world (when OP-TEE).
    •
  • ARM (Supported: only Cortex-A, LPAE/Non-LPAE, PL0/PL1)
    • ARM v7 base. PL2 is NOT supported.
    •
    • Secure memory scanning is also supported, and you don't have to break in the secure world (unlike ARM64).
    •
• v2p/p2v: displays the transformation between virtual addresses and physical addresses.
  •
• xp: is a shortcut for physical memory dump.
  •

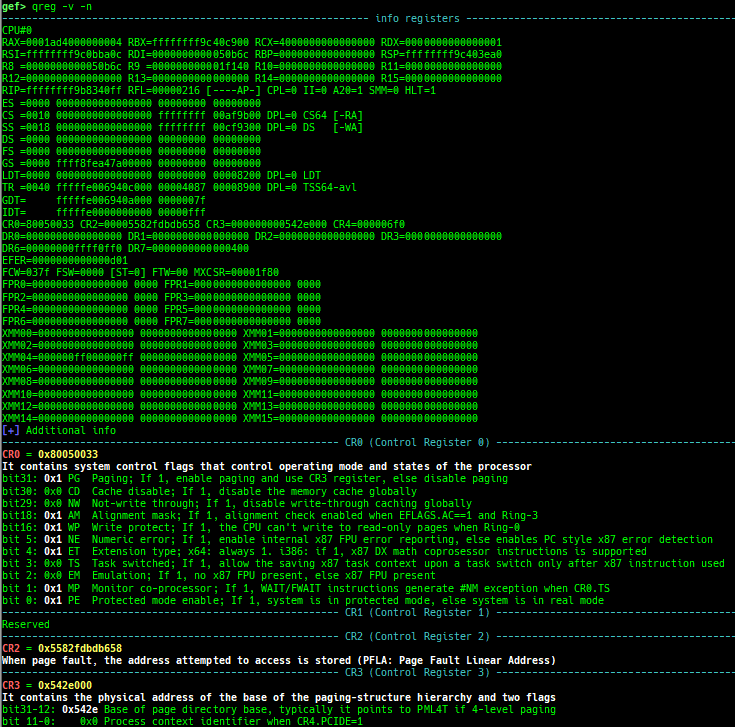

• qreg: displays the register values from qemu-monitor (allows getting values like $cs even under qemu 2.x).
  • It is a shortcut for monitor info registers.
  • It also prints the details of each bit of the system register when x64/x86.
  •

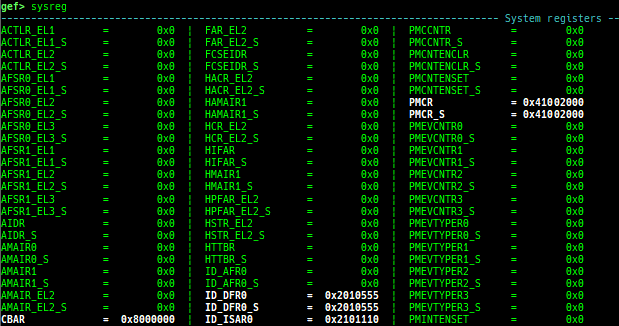

• sysreg: pretty prints system registers.
  • It shows info registers results, excluding general registers.
  •
• msr: reads/writes MSR (Model Specific Registers) value by embedding/executing dynamic assembly.
  • Supported on x64 and x86.
  •
• cet: displays Intel CET settings.
• vbar: displays ARM/ARM64 vector table.
  •
• kbase: displays the kernel base address.
• kversion: displays the kernel version.
• kcmdline: displays the kernel cmdline used at boot time.
• kcurrent: displays current task address.
  •
• kvmmap: prints kernel memory map.
  •
• ksymaddr-remote: displays kallsyms information from scanning kernel memory.
  • Supported kernel versions: 3.x to 6.18.x.
  •

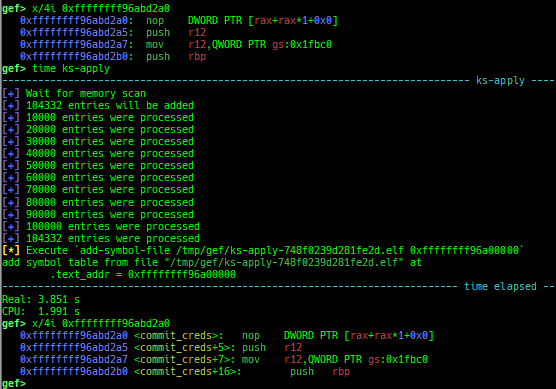

• ksymaddr-remote-apply/vmlinux-to-elf-apply: applies kallsyms information obtained by ksymaddr-remote or vmlinux-to-elf to gdb.
  •
  •
  • Once you get a symboled pseudo ELF file, you can reuse and apply it automatically even after rebooting qemu-system.
  • vmlinux-to-elf-apply and ksymaddr-remote-apply provide almost the same functionality.
    • vmlinux-to-elf-apply: Requires installation of external tools. Create vmlinux with symbols.
    • ksymaddr-remote-apply: Requires no external tools. Create a blank ELF with only embedded symbols.

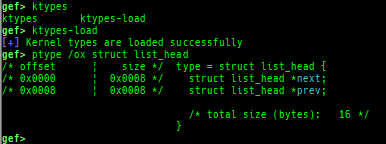

• ktypes: displays kernel type information from scanning kernel memory.
  •
• ktypes-load: loads kernel type information from scanning kernel memory.
  •
• slub-dump: dumps slub free-list.
  • Supported on x64/x86/ARM64/ARM + SLUB + no-symbol + kASLR.
  • Supported regardless of whether CONFIG_SLAB_FREELIST_HARDENED is y or n.
  • Supported regardless of whether CONFIG_SLAB_VIRTUAL is y or n (x64-only).
  • It supports dumping partial pages (-v) and NUMA node pages (-vv).
  • Since page_to_virt is difficult to implement, it will heuristically determine the virtual address from the free-list.
  •
• slab-dump: dumps slab free-list.
  • Supported on x64/x86/ARM64/ARM + SLAB + no-symbol + kASLR.
  •

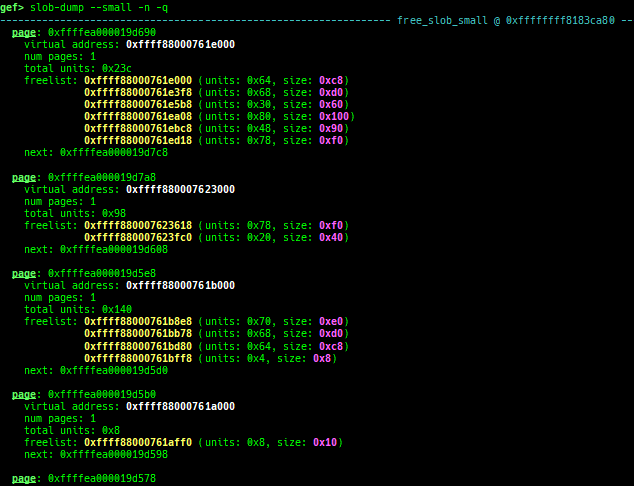

• slob-dump: dumps slob free-list.
  • Supported on x64/x86/ARM64/ARM + SLOB + no-symbol + kASLR.
  •

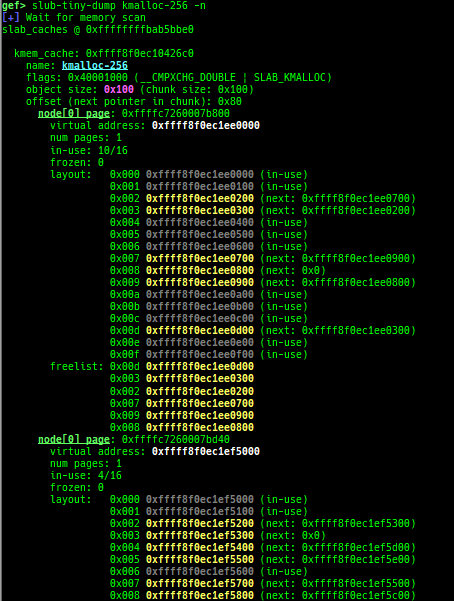

• slub-tiny-dump: dumps slub-tiny free-list.
  • Supported on x64/x86/ARM64/ARM + SLUB-TINY + no-symbol + kASLR.
  •
• slab-contains: resolves the slab cache (kmem_cache) that a certain address (object) belongs to (for SLUB/SLUB-TINY/SLAB).
  •
  • For SLUB/SLUB-TINY, if all chunks belonging to a certain page are in use, they will not be displayed by slub-dump/slub-tiny-dump command.
  • Even with such an address (object), this command may be able to resolve kmem_cache.
• buddy-dump: dumps the zone of the page allocator (buddy allocator) free-list.
  •

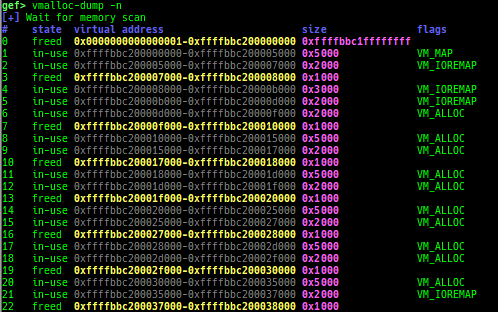

• vmalloc-dump: dumps vmalloc used-list and freed-list.
  •

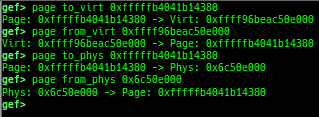

• page: displays the transformation between a struct page and its virtual/physical address.
  •
  • There are shortcuts: virt2page, page2virt, phys2page and page2phys.
• slab-virtual: displays the transformation between slab-meta and its slab-data/struct page address (for CONFIG_SLAB_VIRTUAL=y).
  •
• kchecksec: checks kernel security.
  •
• kmagic: displays useful addresses in the kernel.
  •
• kconfig: dumps the kernel config if available.
  •
• syscall-table-view: displays the system call table.
  •
  • It also dumps the ia32/x32 syscall table under x64.
  • It also dumps the compat syscall table under ARM64.

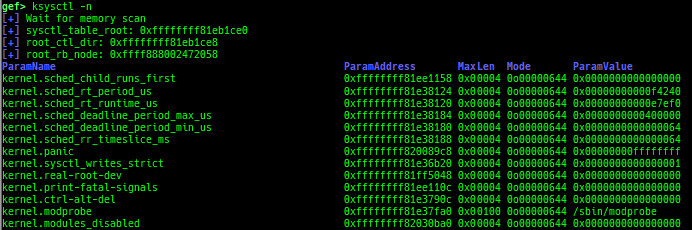

• ksysctl: dumps the sysctl parameters.
  •

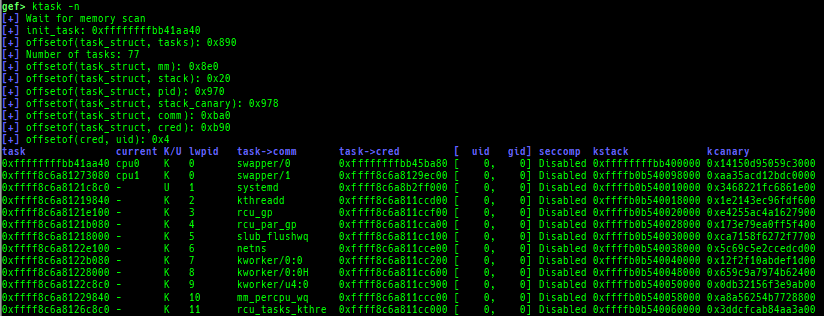

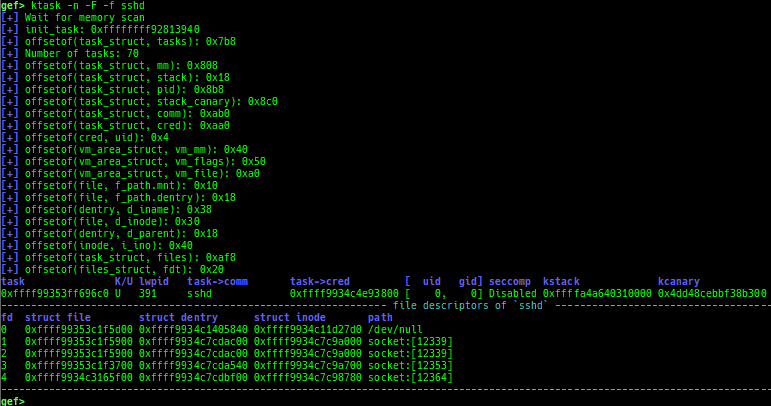

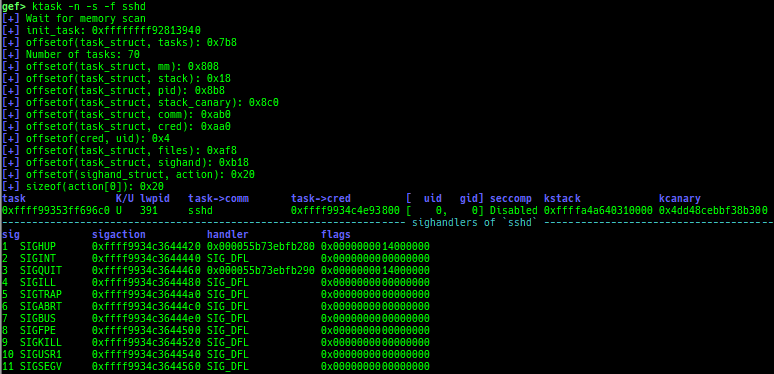

• ktask: displays each task's address.
  •
  • It also displays the memory map of the userland process.
  •
  • It also displays the register values saved on the kstack of the userland process.
  •
  • It also displays the file descriptors of the userland process.
  •
  • It also displays the signal handlers of the userland process.
  •
  • It also displays the namespaces of the userland process.
  •
  • It also displays the seccomp-filter.
  •

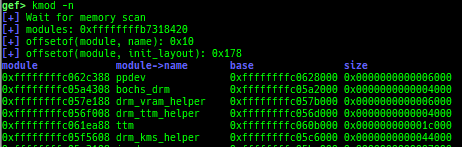

• kmod: displays each module's address.
  •
  • It also displays the symbols of each module.
  •
• kload: loads vmlinux without a load address.
  • It is useful if you have a vmlinux with debuginfo at hand.
• kmod-load: loads the kernel module without a load address.
  • It is useful if you have a kernel module with debuginfo at hand.

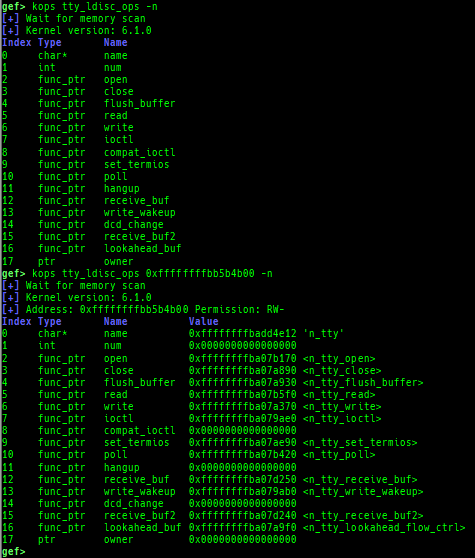

• kops: displays each operation's member.
  •

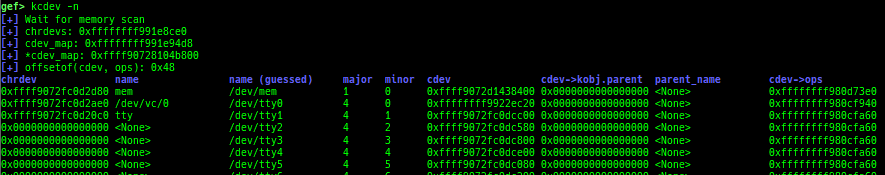

• kcdev: displays information for each character device.
  •
• kbdev: displays information for each block device.
  • If there are too many block devices, detection will not be successful.
  • This is because block devices are not managed in one place, so I use the list of bdev_cache obtained from the slub-dump results.
  •
• kfilesystems: dumps supported file systems.
  •
• kclock-source: dumps the clocksource list.
  •
• kdmesg: dumps the ring buffer of the dmesg area.
  •
• kpipe: displays information for each pipe.
  •

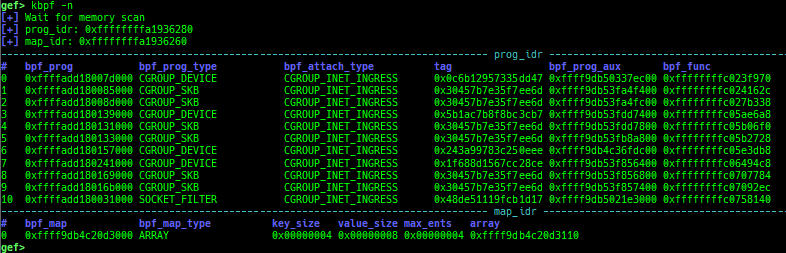

• kbpf: dumps the BPF information.
  •
• ktimer: dumps the timer.
  •

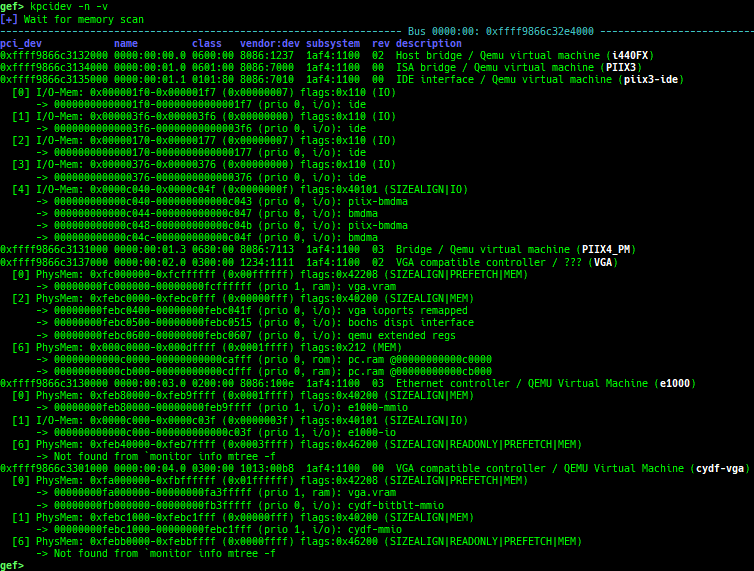

• kpcidev: dumps the PCI devices.
  •
• kipcs: dumps IPCs information (System V semaphore, message queue and shared memory).
  •
• kdevio: dumps I/O-port and I/O-memory information.
  •

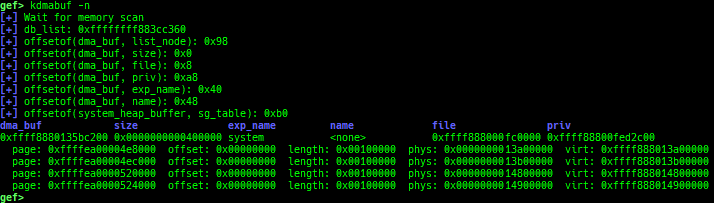

• kdmabuf: dumps DMA-BUF information.
  •
• kirq: dumps irq information.
  •
• knetdev: displays net devices.
  •
• ksearch-code-ptr: searches for the code pointer in kernel data area.
  •

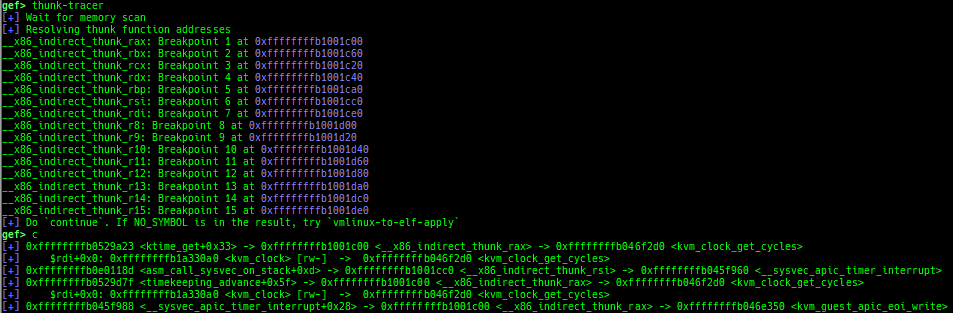

• thunk-tracer: collects and displays the thunk function addresses that are called automatically (only x64/x86).
  • If this address comes from RW area, this is useful for getting RIP.
  •
• usermodehelper-tracer: collects and displays the information that is executed by call_usermodehelper_setup.
  •

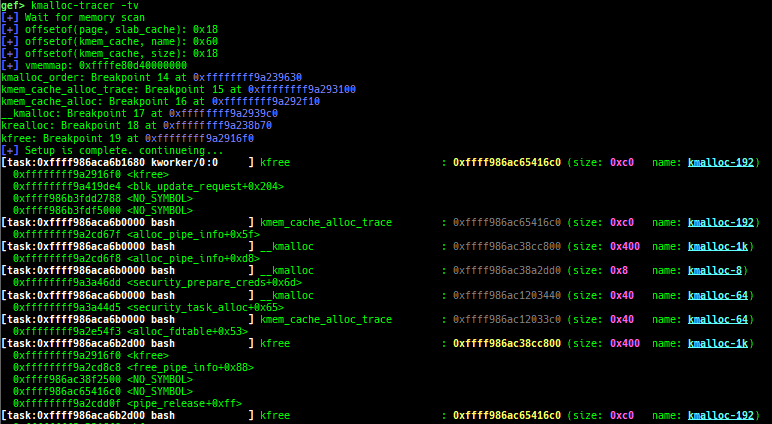

• kmalloc-tracer: collects and displays information when kmalloc/kfree.
  •

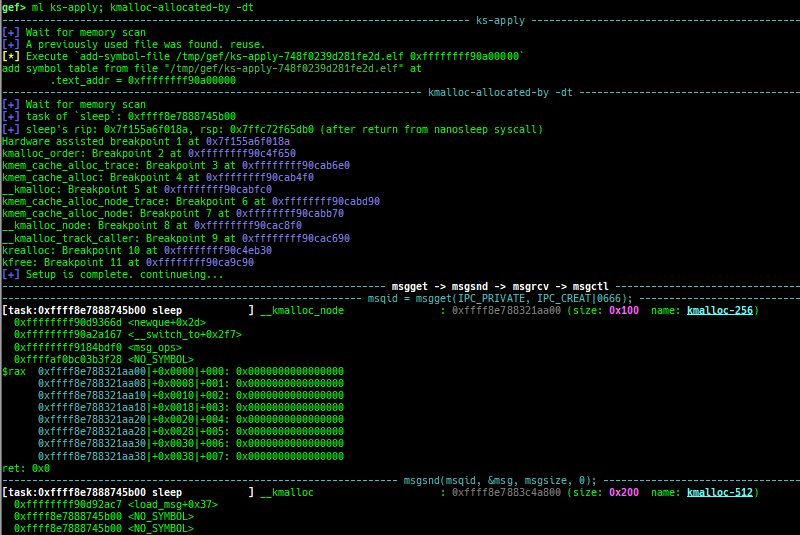

• kmalloc-allocated-by: calls a predefined set of system calls and prints structures allocated by kmalloc or freed by kfree.
  •
• ktrace: traces kernel functions and arguments.
  •
• xsm: dumps secure memory when gdb is in normal world.
  • Supported on ARM64 and ARM.
  •
• wsm: writes the value to secure memory when gdb is in normal world.
  • Supported on ARM64 and ARM.
  •
• bsm: sets the breakpoint to secure memory when gdb is in normal world.
  • Supported on ARM64 and ARM.
  •
• optee-break-ta: sets the breakpoint to the offset of OPTEE-Trusted-App when gdb is in normal world.
  • Supported on ARM64 and ARM.
  •

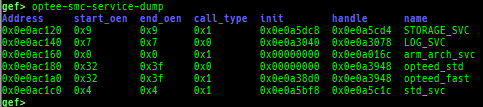

• optee-smc-service-dump: dumps OPTEE SMC services.
  • Supported on ARM64.
  •
• optee-ta-dump: dumps the information of OPTEE-Trusted-Apps from the memory or specified host directory.
  • Supported on ARM64 and ARM.
  •
• optee-shm-list: shows the information of dynamic shared-memory buffers.
  • Supported on ARM64 and ARM.
  •
• pac-keys: pretty prints ARM64 PAC keys.
  • Supported on ARM64.
  •

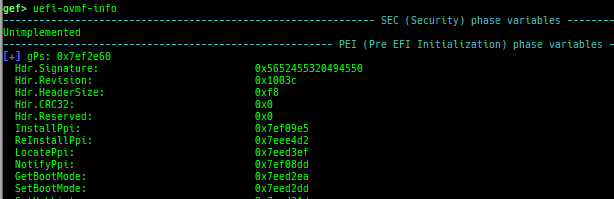

• uefi-ovmf-info: dumps addresses of some important structures in each boot phase of UEFI when OVMF is used.
  • Supported on x64.
  •
• qemu-device-info: dumps device information for qemu-escape.

Qemu-user Cooperation

• si/ni: are wrappers for native si/ni if OpenRISC 1000 or CRIS.
  • On OpenRISC 1000 architecture, branch operations don't work well, so GEF uses breakpoints to simulate.
  • On CRIS architecture, stepi/nexti commands don't work well, so GEF uses breakpoints to simulate.
  • If you want to use native si/ni, use the full form stepi/nexti.
• c: is the wrapper for native c if gdb is connected to qemu-user or Intel Pin.
  • When connecting to gdb stub of qemu-user or Intel Pin, gdb does not trap SIGINT during continue.
  • If you want to trap, you need to issue SIGTRAP on the qemu-user or pin side, but switching screens is annoying.
  • This command realizes a pseudo SIGTRAP trap by trapping SIGINT on the Python side and throwing SIGTRAP back to qemu-user or Intel Pin.
  • It works only for local qemu-user or Intel Pin.
  • If you want to use native c, use the full form continue.

Heap Dump Features

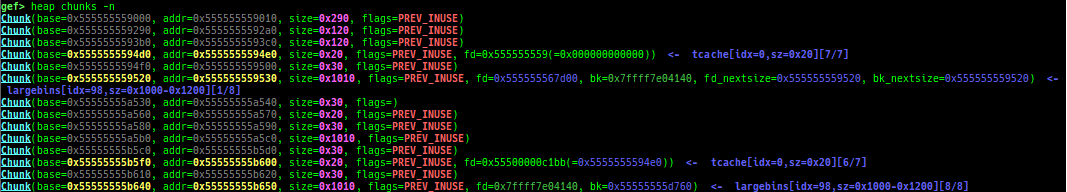

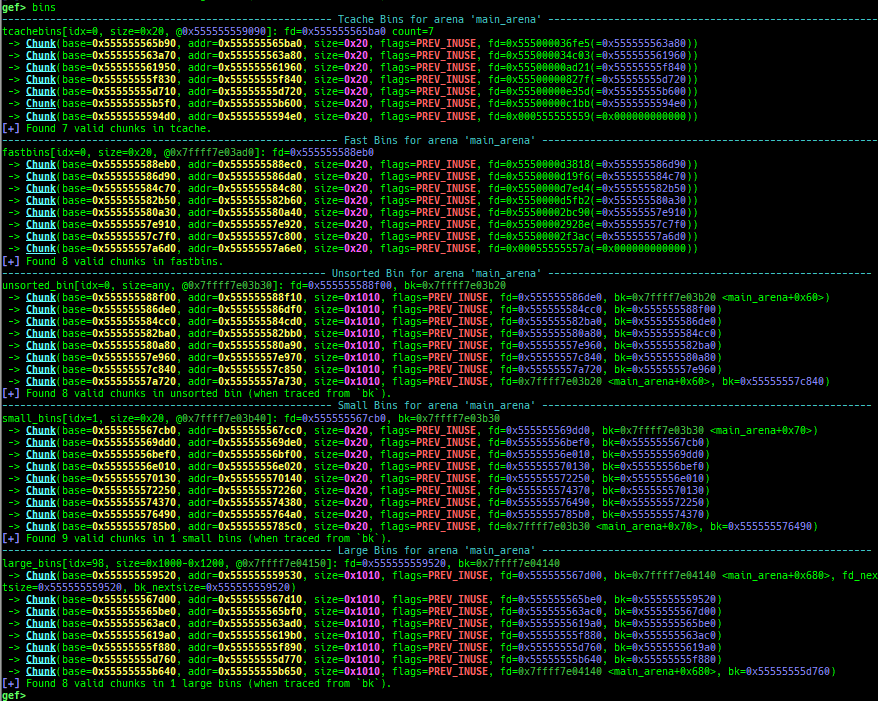

• Glibc heap commands has been improved.
  • It changes the color and prints a symbol if it exists.
    •
  • They print bins information if the chunk is in free-list.
    •
  • Thread arena is supported for all heap commands.
    • Use -a option.
  • It supports some new sub-commands.
    • heap arenas
      •
    • heap top
      •
    • heap bins-simple: displays the heap like pwndbg style.
      •
    • heap parse: displays the heap like as Pwngdb/angelheap style.
      •
    • heap try-malloc
      •
    • heap try-free
      •
      • You can also execute any command on the memory status after emulation is completed.
        •
    • heap try-realloc
    • heap try-calloc
    • heap tcache-index-helper
      •
    • heap find-fake-fast: searches for a memory with a size-like value that can be linked to the fastbin free-list.
      •
    • heap extract-heap-addr: analyzes tcache-protected-fd introduced from glibc-2.32.
      •
    • heap calc-protected-fd: calculates a valid value as protected fd.
      •
    • heap visual-heap: is colorized heap viewer.
      •

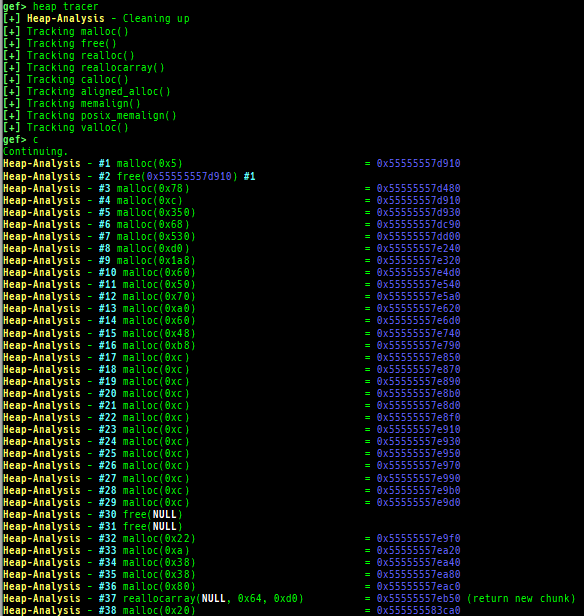

    • heap tracer: has been integrated from heap-analysis-helper and rewritten.
      •
• uClibc heap commands are added.

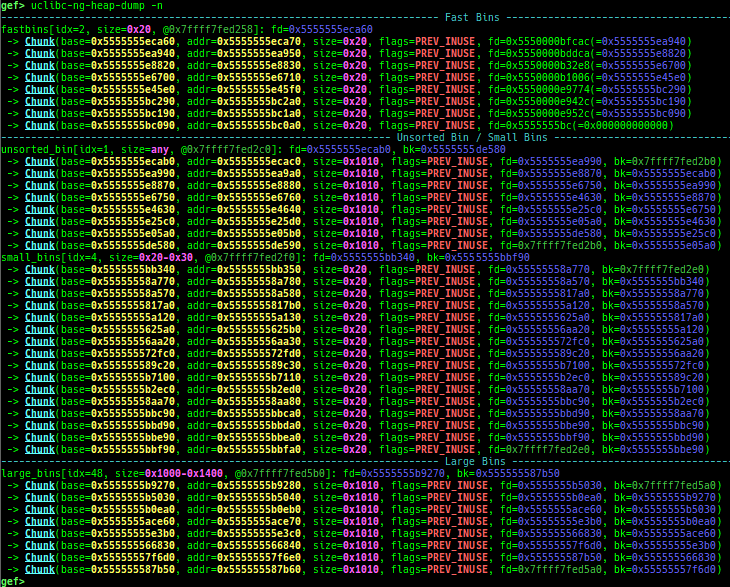

  • uclibc-ng-heap-dump: dumps uClibc-ng heap chunks.
    • Supported on x64 and x86, based on uClibc-ng v1.0.42 malloc-standard.
    •
    • How to test (x64):
      • Download and extract x86-64--uclibc--stable-2024.05-1.tar.bz2 from https://toolchains.bootlin.com/
      • Add /PATH/TO/x86_64-buildroot-linux-uclibc/bin to $PATH, then build as x86_64-linux-gcc test.c.
      • Fix interpreter by patchelf --set-interpreter /PATH/TO/x86_64-buildroot-linux-uclibc/sysroot/lib/ld64-uClibc.so.0 a.out.
  • uclibc-ng-visual-heap: is colorized heap viewer for uClibc-ng.
    •
• partition-alloc-dump: dumps Partition-Alloc free-list for chromium.
  •
  • This command is reserved for the implementation of the latest version of Chromium.
    • Currently tested: v144.x / 1537014 / 4c82f3c6bef4c2cd88a9a8aecbf619844e31ef02
  • Supported on x64 and ARM64 (maybe it works on x86/ARM too, but not tested).
  • It will try heuristic search if the binary has no symbol.
  • How to test:
    • See dev/partition-alloc-dump/downloader.py.
• tcmalloc-dump: dumps TCMalloc (gperftools-2.16-1 or named libgoogle-perftools{4,-dev}) free-list (only x64).
  •
  • How to test:
    • Execute as LD_PRELOAD=/usr/lib/x86_64-linux-gnu/libtcmalloc.so ./a.out.
• musl-heap-dump: dumps Musl-Libc v1.2.5 heap chunks (only x64/x86).
  •
  • How to test:
    • Get and extract the latest source from https://musl.libc.org/
    • Build with ./configure && make install.
    • Build as /usr/local/musl/bin/musl-gcc test.c.

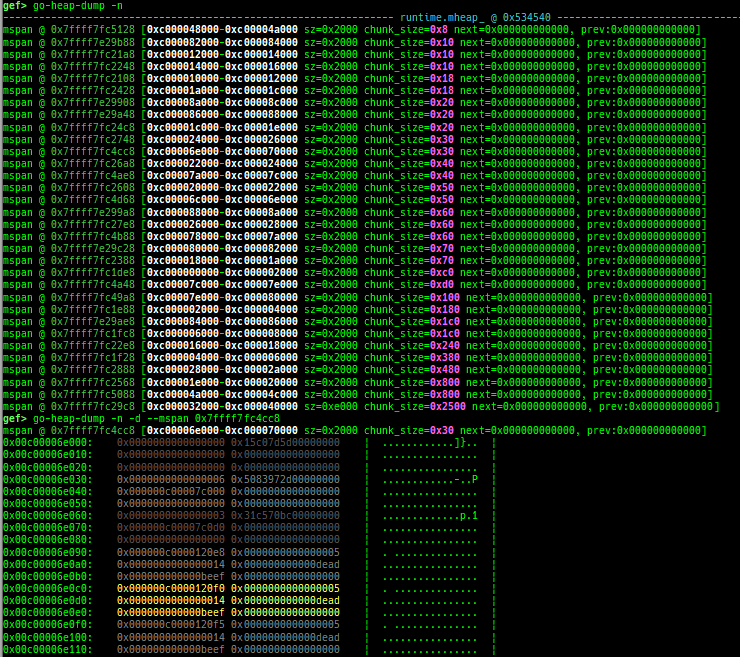

• go-heap-dump: dumps Go Language v1.22.2 mheap (only x64).
  •
• tlsf-heap-dump: dumps TLSF (Two-Level Segregated Fit) v2.4.6 free-list (only x64).
  •
  • How to test (x64):
    • Get and extract the latest source from http://www.gii.upv.es/tlsf/
    • Build with cd TLSF-2.4.6/src && make && cd ../examples && make then use test1 etc.

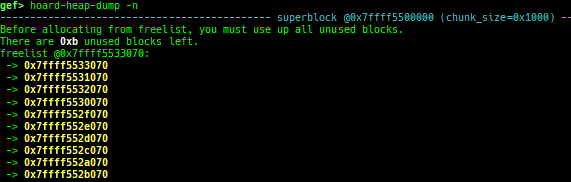

• hoard-heap-dump: dumps Hoard v3.13 free-list (only x64).
  •
  • How to test (x64):
    • Get and extract the latest source from https://github.com/emeryberger/Hoard
    • Build with cd Hoard/src && make.
    • Execute as LD_PRELOAD=/PATH/TO/libhoard.so ./a.out.
• mimalloc-heap-dump: dumps mimalloc free-list (only x64).
  •
  • How to test (x64):
    • Get and extract the latest source from https://github.com/microsoft/mimalloc
    • Build with mkdir build && cd build && cmake -DCMAKE_BUILD_TYPE=Debug .. && make.
    • Execute as LD_PRELOAD=/PATH/TO/libmimalloc.so ./a.out.

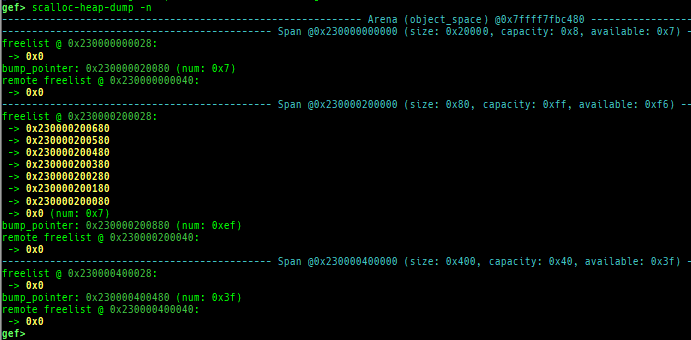

• scalloc-heap-dump: dumps scalloc free-list (only x64).
  •
  • How to test (x64):
    • Get and extract the latest source from https://github.com/cksystemsgroup/scalloc
    • Fix the bug with sed -i -e 's/\(strncat(.*\), 1);/\1, 2);/' src/log.h.
    • Build with gyp --depth . scalloc.gyp && make.
    • Enable overcommit with echo 1 > /proc/sys/vm/overcommit_memory.
    • Execute as LD_PRELOAD=/PATH/TO/libscalloc.so ./a.out.
• snmalloc-heap-dump: dumps snmalloc free-list (only x64).
  •
  • How to test (x64):
    • Get and extract the latest source from https://github.com/microsoft/snmalloc
    • Build with mkdir build && cd build && cmake -G Ninja .. -DCMAKE_BUILD_TYPE=Debug && ninja.
    • Execute as LD_PRELOAD=/PATH/TO/libsnmallocshim.so ./a.out.
• optee-bget-dump: dumps bget allocator of OPTEE-Trusted-App.
  •

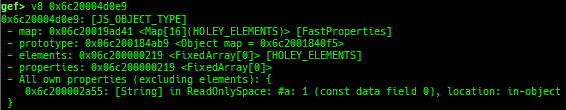

• v8: displays v8 tagged object.
  •

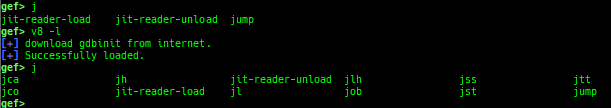

  • It also loads more commands from latest gdbinit for v8.
  •
• cage: displays v8 (especially d8) ubercage.
  •
• v8-list-maps: lists v8 (especially d8) built-in maps.
  •
• v8-dump-space: dumps v8 (especially d8) heap objects in each space.
  •

Improved Features

• vmmap
  • It displays the memory map information even when connecting to gdb stub of qemu-user.
    •
  • It also supports Intel Pin.
    •
  • It also supports Intel SDE.
    •
  • It is redirected to pagewalk when connecting to gdb stub of qemu-system.
  • It supports detection and coloring of Writable, ReadOnly, None and RWX regions.
  • It shows the area each register points to.
• registers
  • It also shows raw values of the flag register, the current ring, the exception level, the secure state, etc.
    •
    •
    •
• context
  • It supports automatic display of system call arguments when calling a system call.
    •
  • It supports new commands:
    • context on
    • context off
  • It supports automatic display of address and value when accessing memory.
    •
  • It supports smart symbol printing for C++ function.
    • ex: std::map<int, std::map<int, int>> will be replaced by std::map<...>.
    •
    • command: gef config context.smart_cpp_function_name true or smart-cpp-function-name (later is used to toggle).
• telescope
  • It displays ordinal numbers as well as offsets.
  • It displays if there are canaries and return addresses in the target area.
    •
  • It supports blacklist address features (to avoid dying when touching the address mapped to the serial device).
  • It also shows the symbol if available.
  • It supports some new options:
    • --is-addr
    • --is-not-addr
    • --is-zero
    • --is-not-zero
    • --tag
    • --uniq
    • --interval
    • --depth
    • --phys
    • --list-head
    • --slab-contains
    • --slab-contains-unaligned

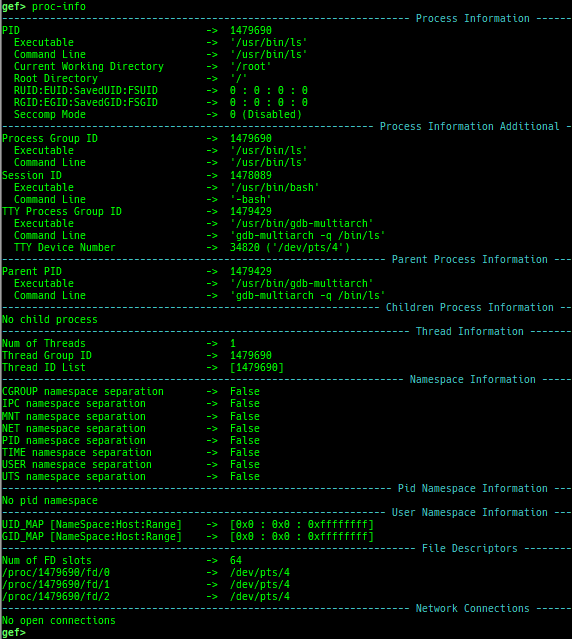

• proc-info
  • It displays some additional information.
    •
• elf-info
  • It displays Program Header and Section Header.
  • It supports parsing from memory.
  • It supports parsing remote binary (if download feature is available).
    •

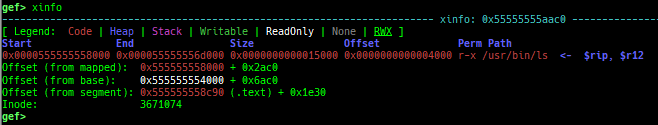

• xinfo
  • It shows more information.
    •
  • It also supports kernel debugging.
• checksec
  • It shows additional information.
    • Static or Dynamic or Static-PIE
    • Stripped or not
    • Debuginfo or not
    • Intel CET IBT/SHSTK
    • ARMv8 PAC, ARMv8 MTE
    • RPATH, RUNPATH
    • Clang CFI/SafeStack
    • System-ASLR, GDB ASLR setting
  • It supports parsing remote binary (if download feature is available).
  •
• got
  • It displays not only GOT address but also PLT address.
    •
  • It scans .plt.sec section if Intel CET is enabled.
  • It can also display the GOT of the library.
    •
  • It can also display type, offset, reloc_arg, section and permission.
    •
• canary
  • It displays all canary positions in memory.
    •
• edit-flags
  • It displays the meaning of each bit if -v option is provided.
    •
    •
    •
• unicorn-emulate
  • It reads and writes correctly to the address pointed to by $fs/$gs.
  • It supports a new mode to stop after executing N instructions (-g).
  • It shows changed memories.
    •
  • It supports replacing the GOT of string functions using avx2 or NEON, which unicorn does not support, with slower original functions.
• ropper
  • It does not reset autocomplete settings after calling imported ropper.

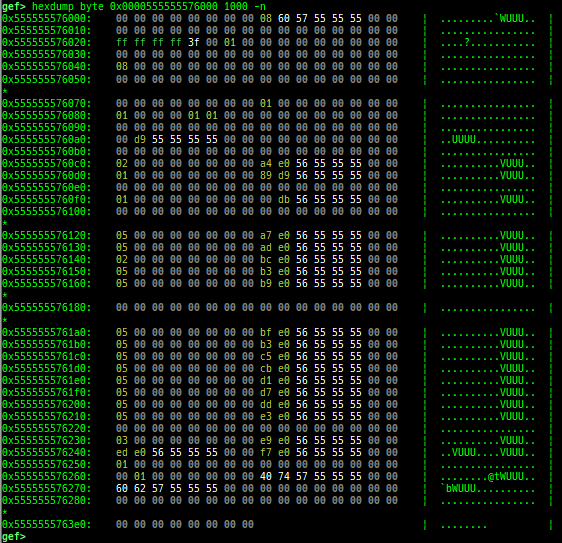

• hexdump
  • It supports physical memory if under qemu-system.
  • It will retry with adjusting read size if reading memory fails.
  • By default, the same line is omitted.
  •

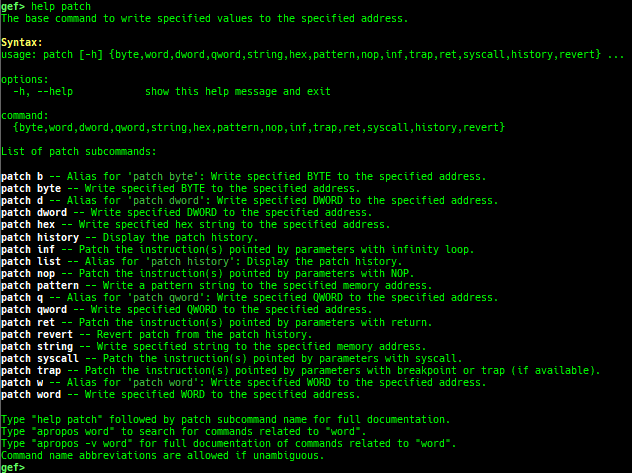

• patch
  • It supports physical memory if under qemu-system.
  • Added some new modes:
    • patch hex
    • patch pattern
    • patch nop
    • patch inf
    • patch trap
    • patch ret
    • patch syscall
    • patch history
    • patch revert
    • patch range-replace
  • nop command has been integrated into patch as sub-command.
  •
• search-pattern
  • It is supported under qemu-system (in short, it works without /proc/self/maps)
  • It supports some new options:
    • --hex
    • --hex-regex
    • --aligned
    • --perm
    • --interval
    • --limit
    • --max-region-size
    • --phys
  • It also searches for UTF-16 string if target string is ASCII.
  •
• mprotect
  • Rewritten to use call-syscall.

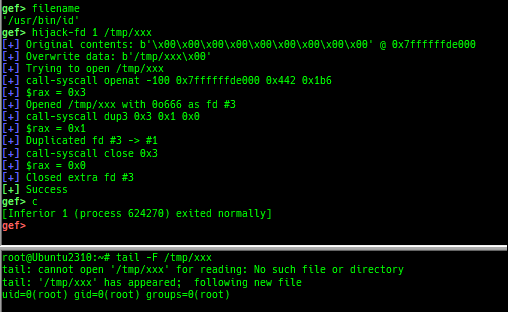

• hijack-fd
  • It supports more architectures.
  •
• format-string-helper
  • It supports more printf-like functions.
• theme
  • Supports many colors.
  •
  •
• reset-cache
  • It has been integrated into gef as sub-command.
  • The cache structure within GEF has changed significantly. This command corresponds to them.
• tmux-setup
  • It has been integrated into gef as sub-command.
  • screen is no longer supported.
  • tmux settings are predefined and cannot be customized.
  • If you want to customize it, edit dev/tmux/tmux_setup.py and run source /path/to/tmux_setup.py.

Added Features

• pid/tid: prints pid and tid.
• filename: prints filename.
• fds: shows opened file descriptors.
• auxv: pretty prints ELF auxiliary vector.
  • Supported also under qemu-user.
  •

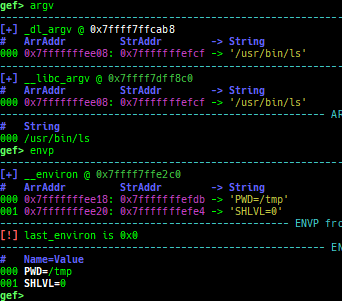

• argv/envp: pretty prints argv and envp.
  •
• dumpargs: dumps arguments of current function.
  •

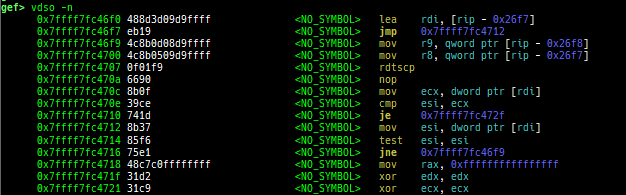

• vdso: disassembles the text area of vdso smartly.
  •
• vvar: dumps the area of vvar.
  • This area is mapped to userland, but cannot be accessed from gdb.
  • Therefore, it executes the assembly code and retrieves the contents.
  •
• gdtinfo: pretty prints GDT entries. If userland, show sample entries.
  •
• idtinfo: pretty prints IDT entries. If userland, show sample entries.
  •
• tls: pretty prints TLS area. Requires glibc.
  •
• fsbase/gsbase: pretty prints $fs_base, $gs_base.
  •
• libc/ld/heapbase/codebase: displays each of the base address.
  •
• got-all: shows got entries for all libraries.
• break-rva: sets a breakpoint at relative offset from codebase.
  •
• command-break: sets a breakpoint which executes user defined command if hit.
  •
• main-break: sets a breakpoint at main with or without symbols, then continue.
  • This is useful when you just want to run to main using qemu-user or pin, or debugging no-symbol ELF.
• load-break: breaks if something is loaded.
• regdump-break: sets a breakpoint which dumps specified registers if hit.
• multi-break: sets multiple breakpoints easily.
• break-if-taken/break-if-not-taken: sets a breakpoint which breaks if branch is taken (or not taken).
• distance: calculates the offset from its base address.
  •
• fpu/mmx/sse/avx/avx512: pretty prints FPU/MMX/SSE/AVX/AVX512 registers.
  •
• xmmset: sets the value to xmm/ymm/zmm register simply.
  •
• mmxset: sets the value to mm register simply.
  •

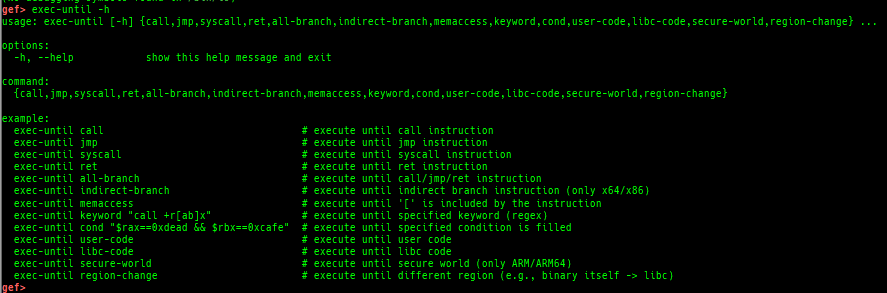

• exec-until: executes until specified operation.
  • Supports the following patterns:
    • call
    • jmp
    • syscall
    • ret
    • indirect-branch (only x64/x86)
    • all-branch (call || jmp || ret)
    • memory-access (detect just [...])
    • specified-keyword-regex
    • specified-condition (expressions using register or memory values)
    • user-code
    • libc-code
    • secure-world
    • region-change
  •
• call-trace: traces call, ret, and syscall instructions.
  •
• xuntil: executes until specified address.
  • It is slightly easier to use than the original until command.
• add-symbol-temporary: adds symbol information from command-line.
  •
• errno: displays errno list or specified errno.
  •
• u2d: shows cast/convert u64 <-> double/float.
  •
• unsigned: shows unsigned value.
  •
• convert: shows various conversion.
  •
• addressify: converts reverse-order hex values to address.
  •
• walk-link-list: walks the link list.
  •
• hexdump-flexible: displays the hexdump with user defined format.
  •

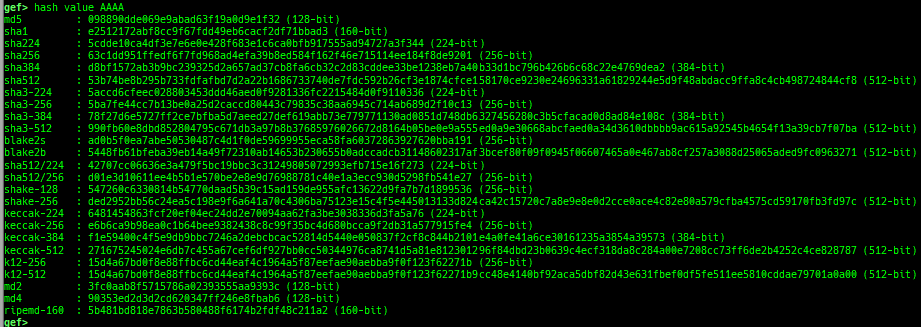

• hash: calculates various hashes.
  •
• crc: calculates various CRCs.
  •
• json: pretty prints json.
  •
• base-n-decode/base-n-encode: decodes/encodes various baseN.
  •
• morse-decode/morse-encode: decodes/encodes morse code.
  •
• saveo/diffo: saves and diffs the command outputs.
  •
• memcmp: compares the contents of the address A and B, whether virtual or physical.
  •
• memset: sets the value to the memory range, whether virtual or physical.
• memcpy: copies the contents from the address A to B, whether virtual or physical.
• memswap: swaps the contents of the address A and B, whether virtual or physical.
• meminsert: inserts the contents of the address A to B, whether virtual or physical.
  •
• strlen: detects the length of the string.
  •
• is-mem-zero: checks the contents of address range are all 0x00 or 0xff.
  •
• seq-length: detects consecutive length of the same sequence.
  •
• strings: searches for ASCII string from specific location.
  •
• xs: dumps string like x/s command, but with hex-string style.
  •

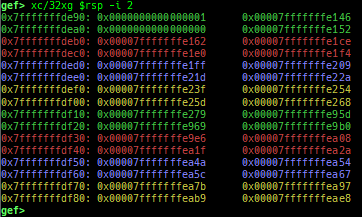

• xc: dumps address like x/x command, but with coloring at some intervals.
  •
• ii: is a shortcut for x/50i $pc with opcode bytes.
  • It prints the value if it is memory access operation.
  •
• extra: manages user specified command to execute when each step.
• comment: manages user specified temporary comment.
• seccomp: invokes seccomp-tools.
• onegadget: invokes one_gadget.
  •
• rp: invokes rp++ with commonly used options.
• call-syscall: calls system call with specified values.
  •
• mmap: allocates a new memory by call-syscall.
• killthreads: kills specific or all threads (for pthread).
• constgrep: invokes grep under /usr/include/.
  •

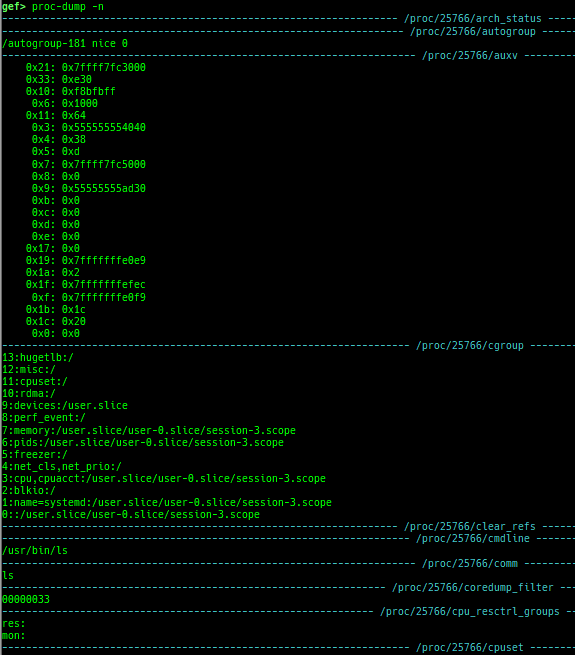

• proc-dump: dumps each file under /proc/PID/.
  •
• up/down: are wrappers for native up/down.
  • It shows also backtrace.
• time: measures the time of the GDB command.
  •
• multi-line: executes multiple GDB commands in sequence.
  •
• cpuid: shows the result of cpuid(eax=0,1,2...).
  •
• read-system-register: reads system register for old qemu-system-arm.
  •
• read-control-register: reads control register for kgdb.
• capability: shows the capabilities of the debugging process.
  •
• dasm: disassembles the code by capstone.
  •

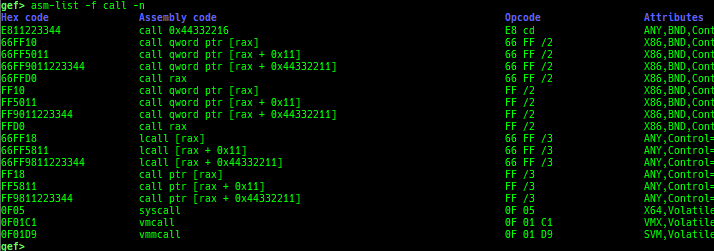

• asm-list: lists instructions. (only x64/x86)
  •
  • This command uses x86data.js from https://github.com/asmjit/asmdb
• syscall-search: searches for system call by regex.
  •
• dwarf-exception-handler: dumps the DWARF exception handler information.
  •
• magic: displays useful addresses in glibc etc.
  •

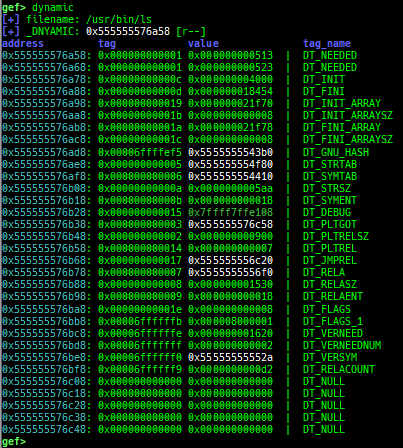

• dynamic: dumps the _DYNAMIC area.
  •

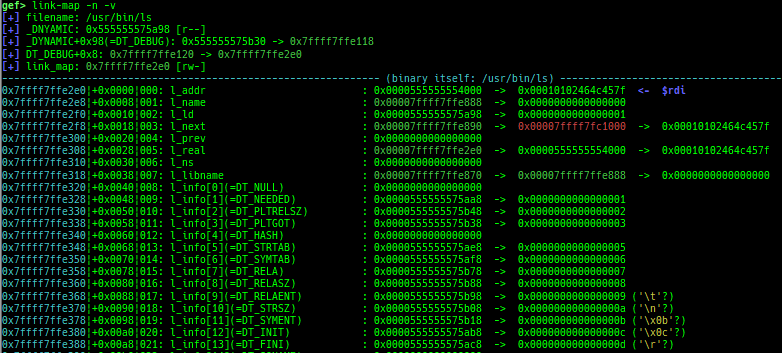

• link-map: dumps useful members of link_map with iterating.
  •
• dtor-dump: dumps some destructor functions list.
  •
• ptr-mangle: shows the mangled value that will be mangled by PTR_MANGLE.
• ptr-demangle: shows the demangled value of the value mangled by PTR_MANGLE.
  •
• search-mangled-ptr: searches for the mangled value from RW memory.
  •
• follow: changes follow-fork-mode setting.
  •
• smart-cpp-function-name: toggles context.smart_cpp_function_name setting.
• ret2dl-hint: shows the structure used by return-to-dl-resolve as hint.
  •

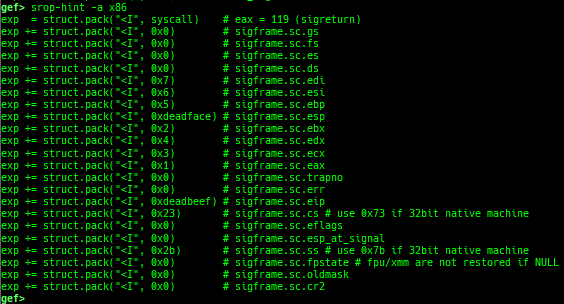

• srop-hint: shows the code for sigreturn-oriented-programming as hint.
  •
• sigreturn: displays stack values for sigreturn syscall.
  •
• smart-memory-dump: dumps all regions of the memory to each file.
  •
• load-file: loads the file into memory.
• load-file-mmap: loads the file into memory that allocated by mmap.
• search-cfi-gadgets: searches for CFI-valid (for CET IBT) and controllable generally gadgets in the executable area.
  •
• symbols: lists all symbols with coloring.
  •
• types: lists all types with compaction.
  •
• dt: makes it easier to use ptype /ox TYPE and p ((TYPE*) ADDRESS)[0].
  •
  • This command is designed for several purposes.
    1. When displaying very large struct, you may want to go through a pager because the results will not fit on one screen. However, using a pager, the color information disappears. This command calls the pager with preserving colors.
    2. When ptype /ox TYPE, interpreting member type recursively often result is too long and difficult to read. This command keeps result compact by displaying only top-level members.
    3. When p ((TYPE*) ADDRESS)[0] for large struct, the setting of max-value-size is too small to display. This command adjusts it automatically.
    4. When debugging a binary written in the Golang, the offset information of the type is not displayed. This command also displays the offset.
    5. When debugging a binary written in the Golang, the p ((TYPE*) ADDRESS)[0] command will be broken. This is because the Golang helper script is automatically loaded and overwrites the behavior of p command. This command creates the display results on the Python side, so we can display it without any problems.
• mte-tags: displays the MTE tags for the specified address.
  • Supported on ARM64.
  •

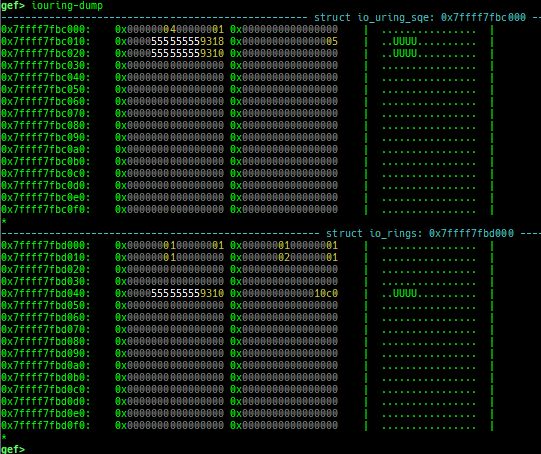

• iouring-dump: dumps the area of iouring (only x64).
  • This area is mapped to userland, but cannot be accessed from gdb.
  • Therefore, it executes the assembly code and retrieves the contents.
  •
• gef version: shows software versions that GEF uses.
  •
• gef status: shows architecture information used in GEF.
  •
• gef reset-breakpoint: shows and resets all breakpoints.

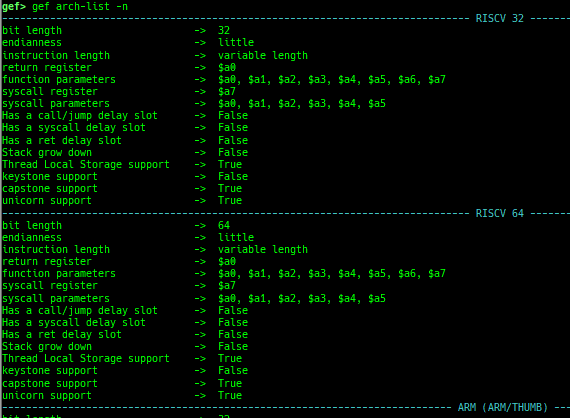

• gef arch-list: displays defined architecture information.
  •
• gef pyobj-list: displays defined global Python objects.
  •
• gef avail-comm-list: displays a list of commands which are available or not for the current architecture and gdb execution mode.
  •
• gef set-arch: sets a specific architecture to GEF.
• gef check-update: checks for GEF updates.
• binwalk-memory: scans memory by binwalk.
  •
• filetype-memory: scans memory by file and magika.
  •
• sixel-memory: shows image to terminal by imagemagick.
  •
  • If you have pillow and pyzbar installed, a barcode detection option is also available.
• stdio-dump: dumps members of stdin/stdout/stderr.
  •
• peek-pageframe: reads page frame data.
  •
• peek-pageflags: reads page flags of a page frame.
  •
• angr: finds simple constraints by angr.
  •
• history: shows gdb command history easily.
  •
• crc32rev: performs CRC32 reverse calculation limited to ASCII character range.
  •
• vdump: visualizes memory data like an image.
  •
• freq-analysis: visualizes the frequency of occurrence of each byte.
• qemu-system-memory-region-dump: dumps memory regions for qemu-system.
  •
• find-syscall: searches the syscall gadget.
  •
• fpchain: dups chains from __IO_list_all.
  •

Other

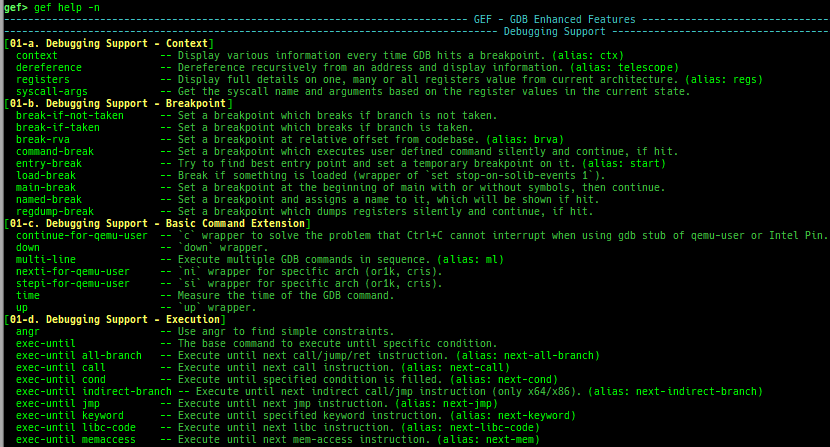

• The category is introduced in gef help.
  •
• Combined into one file (from gef-extras). The following are moved from gef-extras.
  • current-stack-frame, xref-telescope, bytearray, and bincompare.
  • This is because a single file is more attractive for me than ease of maintenance.
• The system-call table used by syscall-args is moved from gef-extras.
  • It was updated up to Linux kernel 6.18 for each architecture.
• Removed some features that I don't use.
  • $
  • ida-interact
  • gef-remote
  • pie
  • pcustom
  • ksymaddr
  • trace-run
  • shellcode
• Many bug fixes / formatting improvements / usability enhancements (made it easy for me to use).

FAQ

• See docs/FAQ.md.
