trice - TRace Ids C Embedded

embedded device C printf-like trace code and real-time PC logging (trace ID visualization)

About

• C trace (traceLog) code and real-time PC logging with trice (Go sources).

traceLog

• traceLog is a fast (~16 clocks!!!) and small loggging technique, a tracer in software usable for analyzing dynamic states during development, runtime or simply for narrow bandwidth logging in the field.
  • Usage is similar to 'printf()', but the format strings go not into the target image.
  • The needed code instrumentation is minimal:
    • Add one small C-file to your project and include a C-header where traceLogs are used.
    • Adapt a config file and the hardware layer.

trice

• Manages traceLogs inside a C|C++ source tree during target compile time.
• Displays traceLogs in realtime during target runtime.

traceLog

It is avoiding all the internal overhead (space and time) of a printf() statement. For example instead of writing

printf("time is %d:%d:%d\n", hour, min, sec);

you can write

TL8("time is %d:%d:%d\n", hour, min, sec);

into a source file of your project. The 8 stays here for 8 bit values (0, 16 and 32 also possibe)

When performing trice update this line changes to

TL8_3( Id(12345), "time is %d:%d:%du\n", hour, min, sec);

where 12345 is an as ID generated random number not used so far. Automatically the ID is added to an ID list together with the appropriate format string information. The TL8_3 means 3 bytes as parameters in this example and allows efficient code and a compile time check.

Right now the automatic replacement of TL8( ... ) with TL8_3( Id(12345), ...) is not fully implemented yet, so write TL8_3( Id(0), "time is %d:%d:%du\n", hour, min, sec); Also the total amount of data is currently limitated to 8 bytes, but this is easy to extend.

When the embedded project is compiled, only the ID goes into the source image but not the format string, what results in a smaller memory footprint.

During TL* runtime, inside the microcontroller only the ID (together with the parameters like hour, min, sec) is copied to a buffer. Execution time for a TL16_1 (as example) on a 48 MHz ARM is about 16 systicks resulting in 250 nanoseconds duration, so you can use tracelog also inside interrupts. The needed buffer space is one 32 bit word per normal traceLog (for up to 2 data bytes). Just in case the internal fifo overflows, the data are still in sync, you simply loose traces.

Slightly delayed in the background the trace goes to the communication port, what is also fast compared to all the actions behind a printf() statement.

The buffered 4 byte traceLog is transmitted as an 8 byte packet allowing start byte, sender and receiver addresses and CRC8 check to be used later in parallel with different software protocols.

Please understand, that when debugging code containing TL* statements, during a TL* step-over only one ore more 32 bit values go into the internal fifo buffer and no output is visible because of the stopped target.

trice

Executing trice update at the root of your project source updates the TL* statements inside the source code and the ID list (only where changes occured).

With trice log -port COM12 -baud 115200 you can visualize the traceLogs on the PC, if for example COM12 is receiving the data from the embedded device.

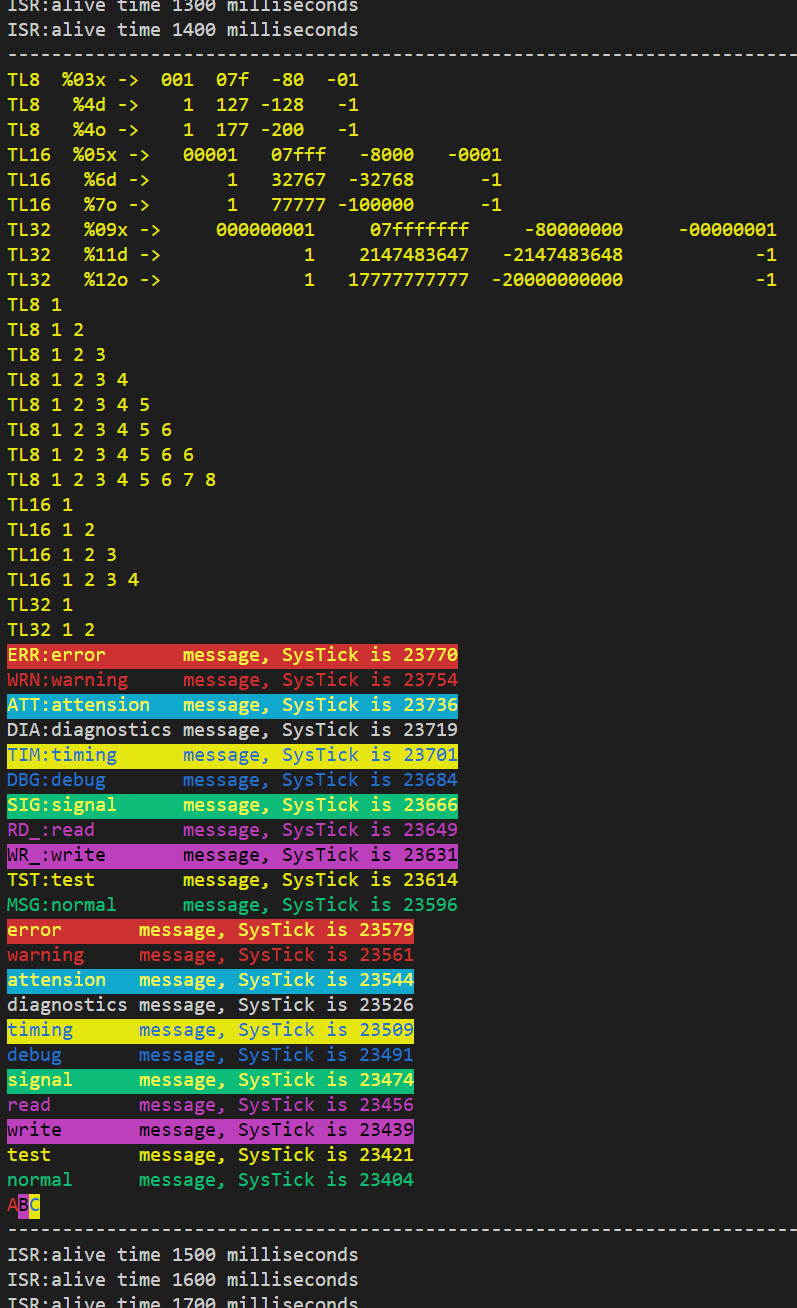

The following capture output comes from an example project inside.\testdata

See traceLogCheck.c for reference. The traceLogs can come mixed from inside interrupts (white ISR:...) or from normal code. For usage with a RTOS protect TL* against breaks. Regard the differences in the read SysTick values. These differeces are the MCU clocks needed for one tracelog (~0,25µs@48MHz).

Use -color off switch for piping output in a file or -color alternate for a different color set. (color set designs are welcome, see func colorSetAlternate() in emit.go)

Setup

Project structure

name	info
cmd/	the trice sources
pkg/	the internal tricepackages
README.media	images for this README
srcC/	C sources for your embedded project
testdata/	example target projects

Check the trice binary

• Copy command trice into a path directory.
• Run inside a shell trice check -list path/to/til.json. You should see output like this:

Instrument a target source code project

• Copy proj_traceLogConfig.h into your C|C++ source project, rename it to traceLogConfig.h and adapt it to your needs.
  • You may need to define the compiler specific stuff for your compiler.
  • If you short of RAM reduce the TL_FIFO_SIZE value - beware: it must be a power of 2! For many cases 64 bytes will do.
• Include traceLog.c unchanged into your project and make sure the traceLog.h header file is found by your compiler.
• Add #include "traceLog.h" to your main.c[pp] and put TL0( Id(0), "msg:Hello world!\n" ); after your initialization code.
• Run trice u at the root of your source code. Afterwards:
  • The Id(0) should have changed into Id(12345) as example. (The 12345 stays here for a 16bit non-zero random number).
  • A file til.json (trace id list) should be generated.
  • Running trice check should show your message, indicating everything is fine so far.
• trice help is your friend if something fails.
• Next step is the adaption to your hardware. Copy ./scrC/proj_traceLogInterface.h into your project, rename it to traceLogInterface.h and adapt it according to your needs. If you are using an STM32 device you can probably use the file ./testdata/traceLogDemoF030R8/Inc/traceLogInterface.h as a starting point and nearly unchanged, just the UART number may be different.
• For help have a look at the differences between these 2 projects:
  • ./testdata/generatedDemoF030R8 - It is just the STM32 CubeMX generated code.
  • ./testdata/traceLDemoF030R8 - It is a copy of the above enhanced with traceLog check code.
• After compiling and flashing run trice -port COMn -baud m with n and m set to correct values
• Now start your device and you should see the hello world message coming from your target.
• If you use a legacy project containing printf() statements you can simply transform them to TL* statements.
• It could be helpful to add trice u ... as prebuild step into your toolchain for each file or for the project as a whole. This way you cannot forget the update step, it performs automatically.

Notes

• Using traceLog not only for dynamic debugging but also as logging technique is possible and gives the advantage to have very short messages (no strings) for transmission, but keep in mind that the file til.json is the key to read all output if your devices in the field for 10 or more years.
• You can consider this also as a kind of intelligent data compression what could be interesting for IoT things, especially NB-IoT, where you have very low data rates.
• Also it is possible to encrypt the 8 byte transfer packets to get a reasonable protection for many cases.
  • Treyfer is a recommendation and planned as a coming option.
• You can even translate the til.json in different languages, so changing a language is just changing the til.json file.
• traceLog has intentionally no timestamps for performance reasons. But you can add own timestamps as parameters. Having several devices with traceLog timestamps, network timing measurements are possible.
• During trice update so far unknown IDs are added to the ID list (case new sources added) with a Created utc timestamp.
• If an ID was deleted inside the source tree (or file removal) the appropriate ID's stay inside the ID list but get a Removed utc timestamp. TODO
• If the same ID appears again the appropriate Removed timestamp is deleted inside the ID list and the ID is aktive again.
• If duplicate ID's with different format strings found inside the source tree (case several developer) the newer ID is replaced by a new ID.
  • The probability for such case is low, because of the random ID generation.
• If the format string was modified, the ID goes into the Removed state and a new ID is generated.
• Keeping obsolete IDs makes it more comfortable during development to deal with dfferent firmware variants at the same time.
• This way you can simply copy a TL* statement and modify it without dealing with the ID. The trice tool will do for you.
• The ID list should go into the version control repository.
• For a firmware release it makes sense to remove all unused IDs from til.json.
  • This could be done by deleting til.json, getting the legacy til.json from the former firmware release from the source control system and enhance it with the actual release software IDs by simply calling 'trice update'.

Build trice from Go sources

• Install Go, download the trice sources and cd into the trice directory
• Testing

go test ./...

• Build & Install

go install ./...

Afterwards you should find an executable trice inside $GOPATH/bin/

• Running

trice help
